300W Pulse Laser Cleaning Machine For Wood Metal Paint Rust Removal Aluminum Oxidation Water Cooling

Pre-Order Only, from order to delivery 5 - 6 weeks

Introduction:

We are a small business company designed to manufacture quality laser welding machines, laser cleaning machine and other related products to serve the USA nation and worldwide countries. Our clients are from personal hobby collections to auto shops to large plant like X-spaces.

Pulsed laser cleaning is currently the laser cleaning method that minimizes damage to the surface of the base material.

It does not cause high temperatures in the base material during the cleaning process.

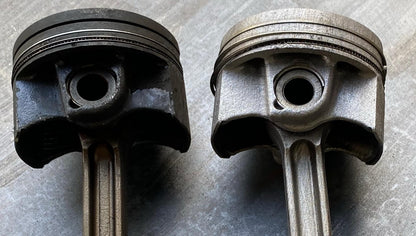

Therefore, it is suitable for removing stains, rust and paint from the surface of wood products, thin metal sheets, precision fittings such as mould, gears, etc. It is also very suitable for cleaning the oxide layer on the surface of aluminum.

There are many types of pulsed lasers.

Even for the same power of pulsed lasers, their pulse width, single pulse energy, and frequency can be very different.

The same looking cleaning gun will also have differences in internal lenses, system parameters, and after sales support.

Therefore the videos that appear on this product page are only representative of this product. It cannot be used as a reference for other machines with the same appearance, or similar accessories, or same laser power.

We guarantee that these videos have been filmed by ourselves and the machine can achieve 100% the same cleaning results as the videos.

Dimensions (W x D x H):

Machine:22.0 x 33.5 x 35.5 inches

Weight

Machine:80kg

Parameters

· Laser Source: 1060-1080 nm pulse fiber laser

· Laser Output power: 300W

· Laser Peak Power: 60KW+

· Laser frequency adjustment range: 1-1000 kHz

· Laser pulse width: 10-500 ns

· Machine Power In & Consumption: < 3.5 KW

· Cable Length: From Base Unit to Head : 5 m

· Cooling System: Water Cooling

· Cleaning Head Gun: 1.6 lb handheld Wobble head Gun

· Operating Environment:

· Storage temperature 5-131 ℉/ -15-55 ℃

· Operating temperature 50-99 ℉ / 10 - 38 ℃

· Humidity 5-85% (no condensation)

· Coolant: Pure Water or Anti-freeze Coolant

· Maximum input working pressure ≤1Mpa.

· Safety: Class 4 Laser Device. Customer responsible for standard ANSI Z136.1 safety precautions.

· Facilities Electrical Requirements: 220±10% V AC,50/60Hz

Accessories

Protective Lens x5

Laser Safety Glasses x1
