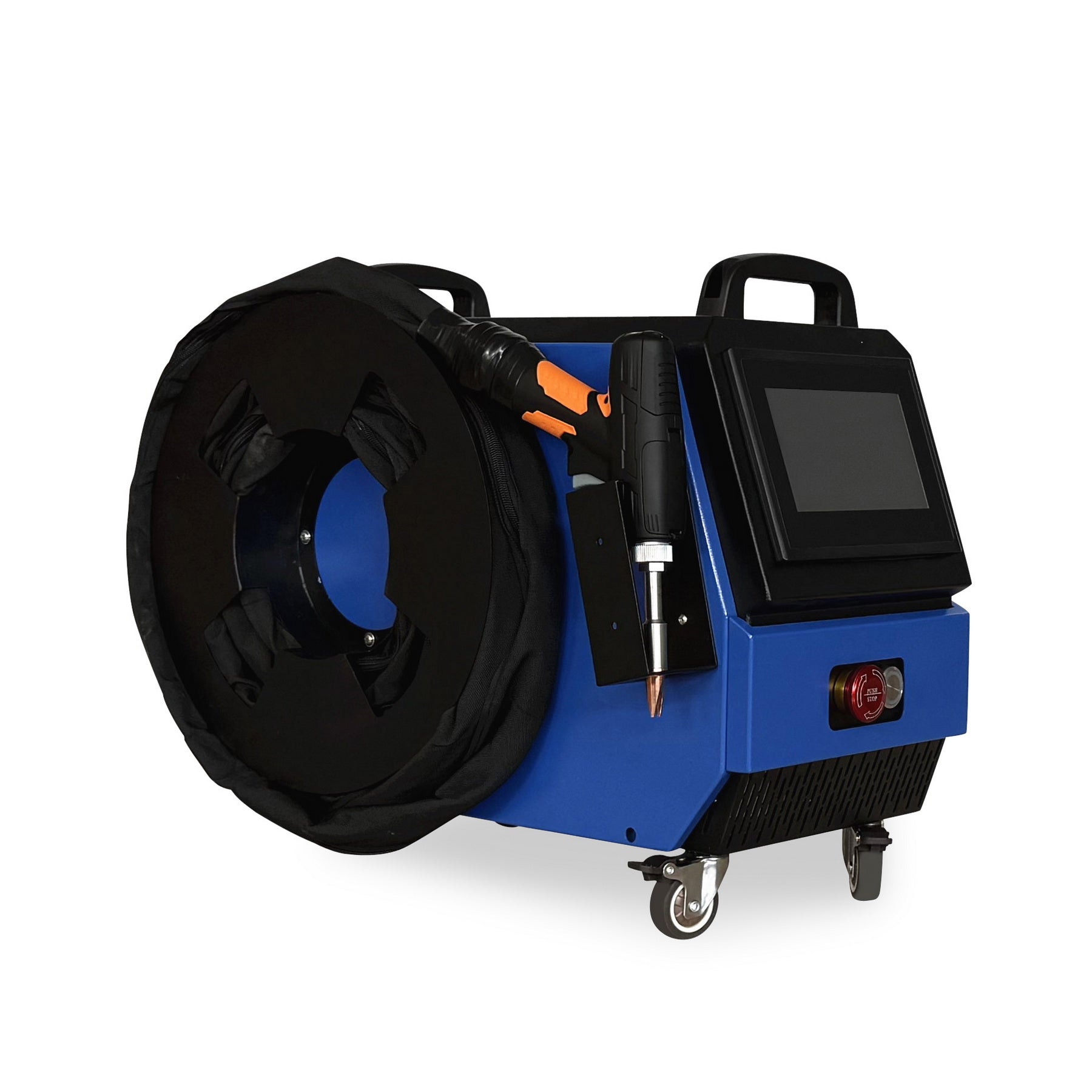

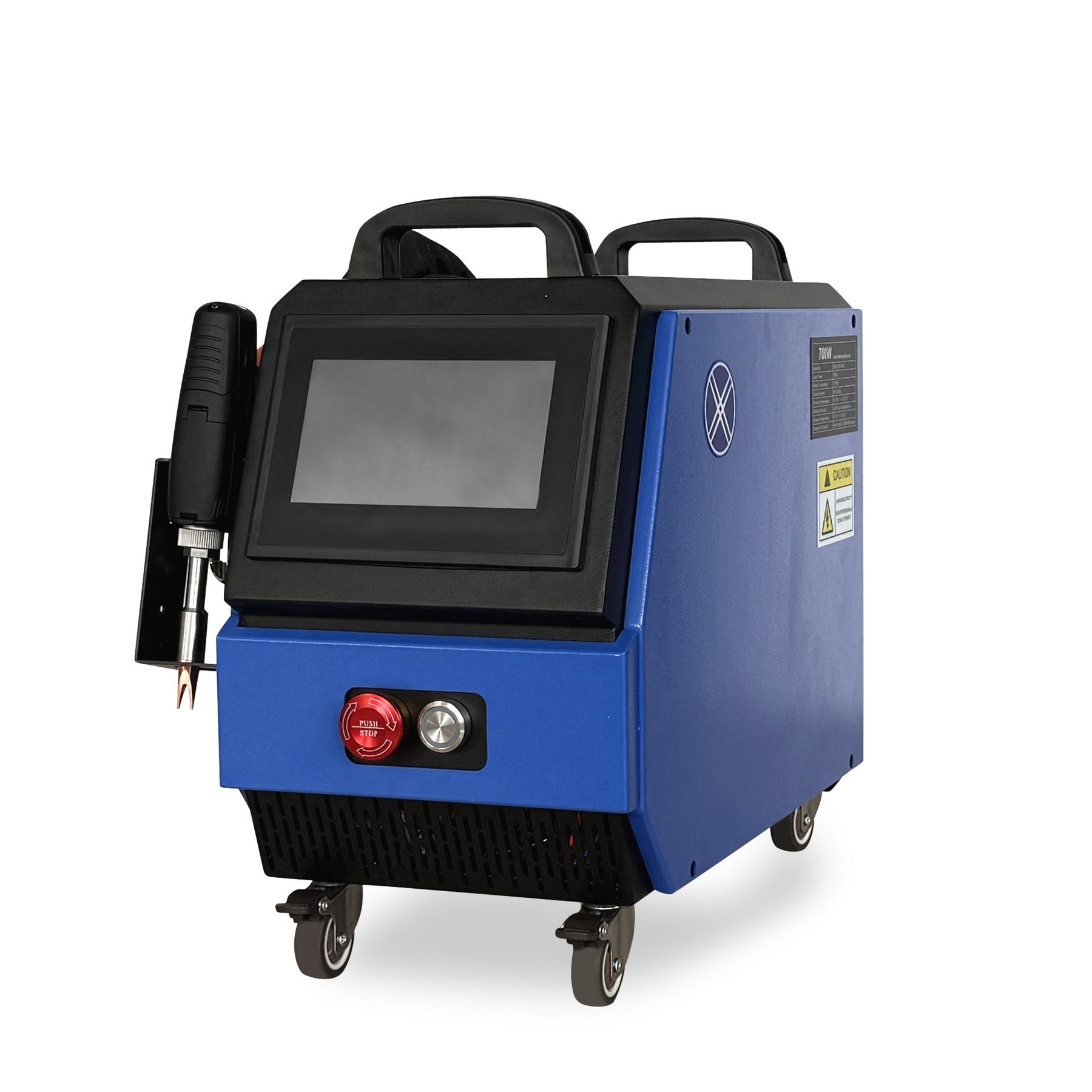

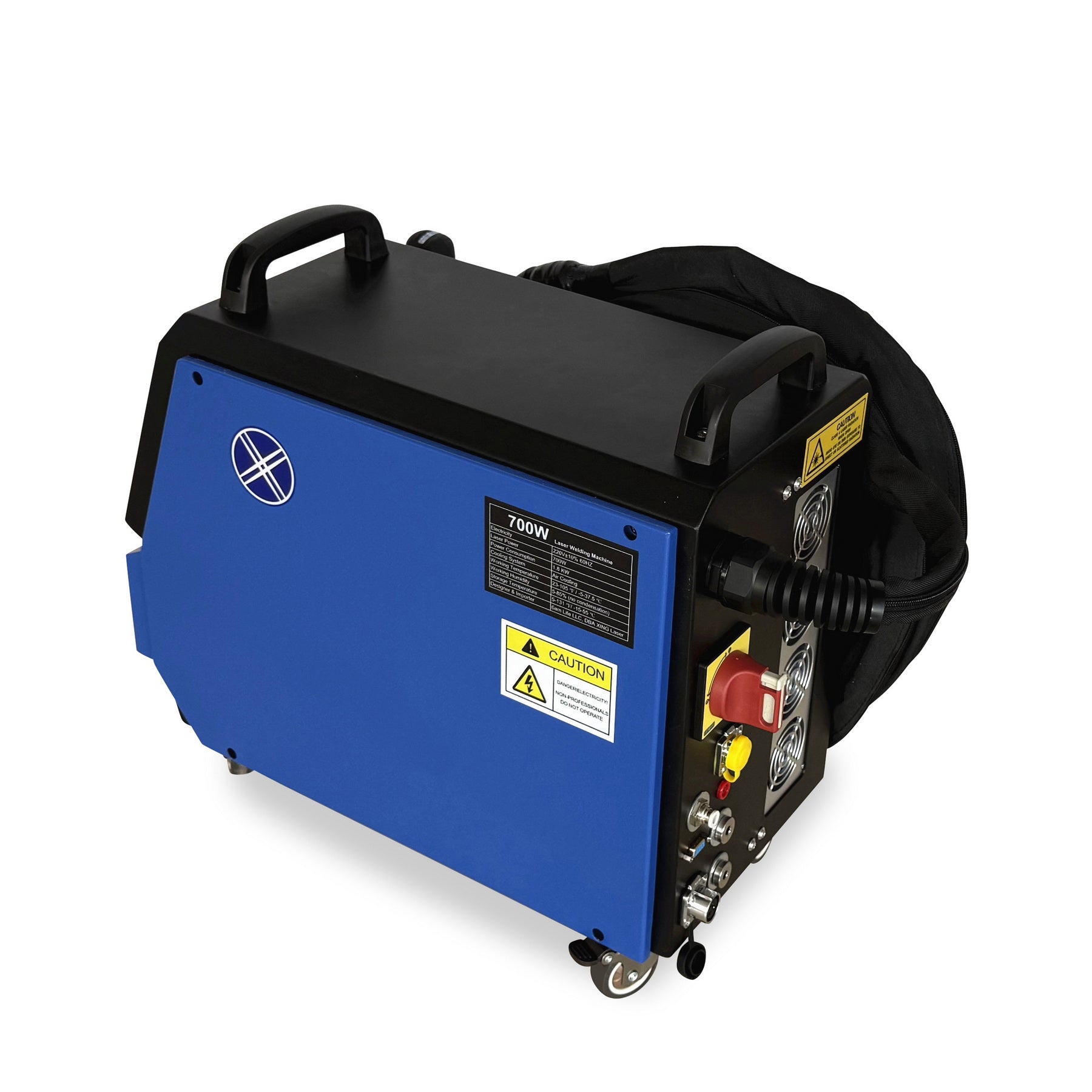

Portable 700W Handheld Welding Machine Laser Welding Laser Welder Laser Cleaning
Portable 700W Handheld Welding Machine Laser Welding Laser Welder Laser Cleaning
Regular price
$3,250.00 USD
Regular price
$4,875.00 USD
Sale price
$3,250.00 USD
Shipping calculated at checkout.
Fiber Laser Welding Machine Specifications
Facilities Electrical Requirements

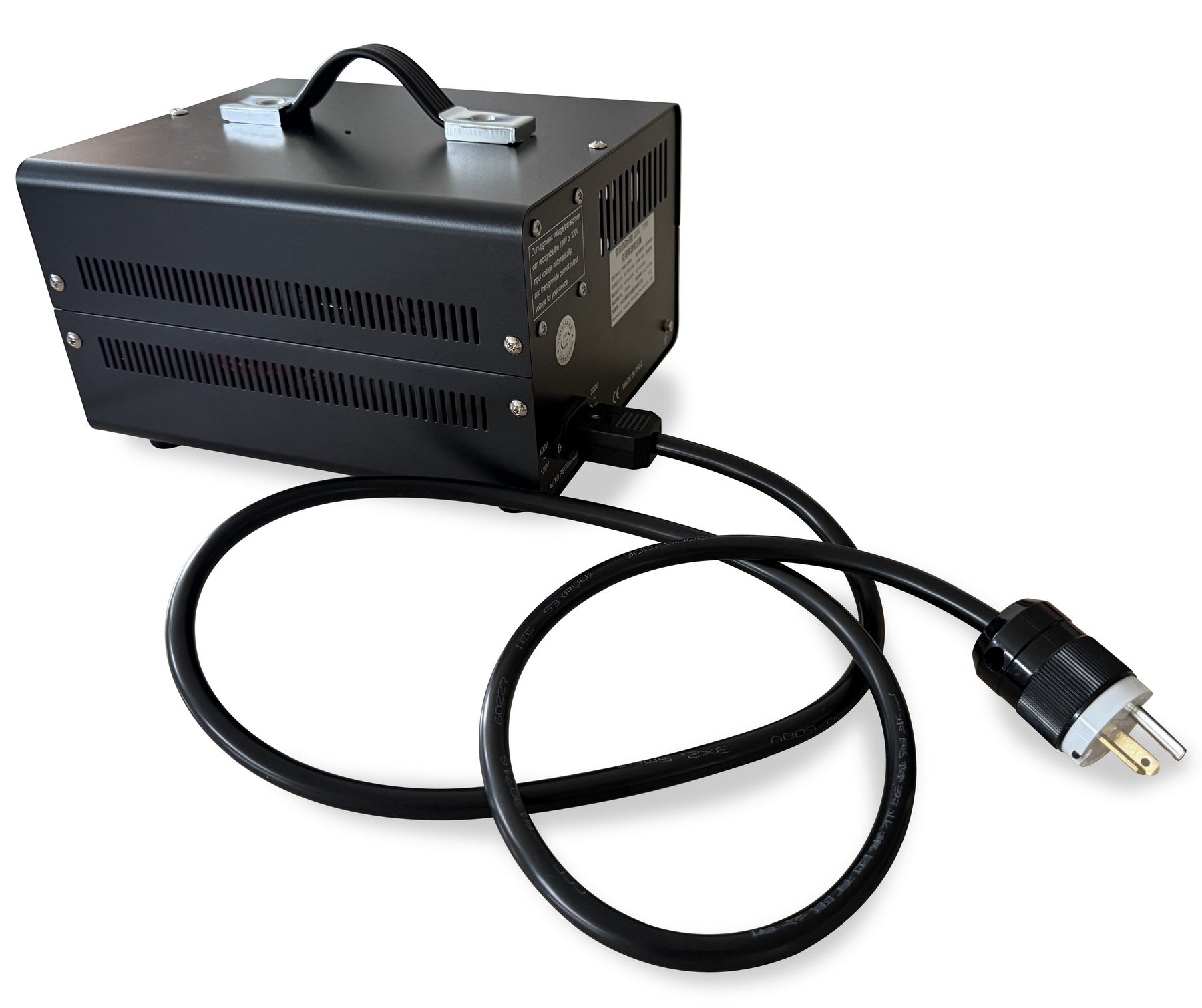

- AC, 60 Hz, 110 or 220 V up/down 10%, Single Phase (110V with transformer included)
Laser Specifications
- Laser Source: 1075 nm to 1085 nm fiber laser
- Laser Output Power: 700 W
- Power Input & Consumption: < 1.7 kW
Mechanical & Operational Details
- Cable Length (Base Unit to Head): 30 ft (about 9 m)

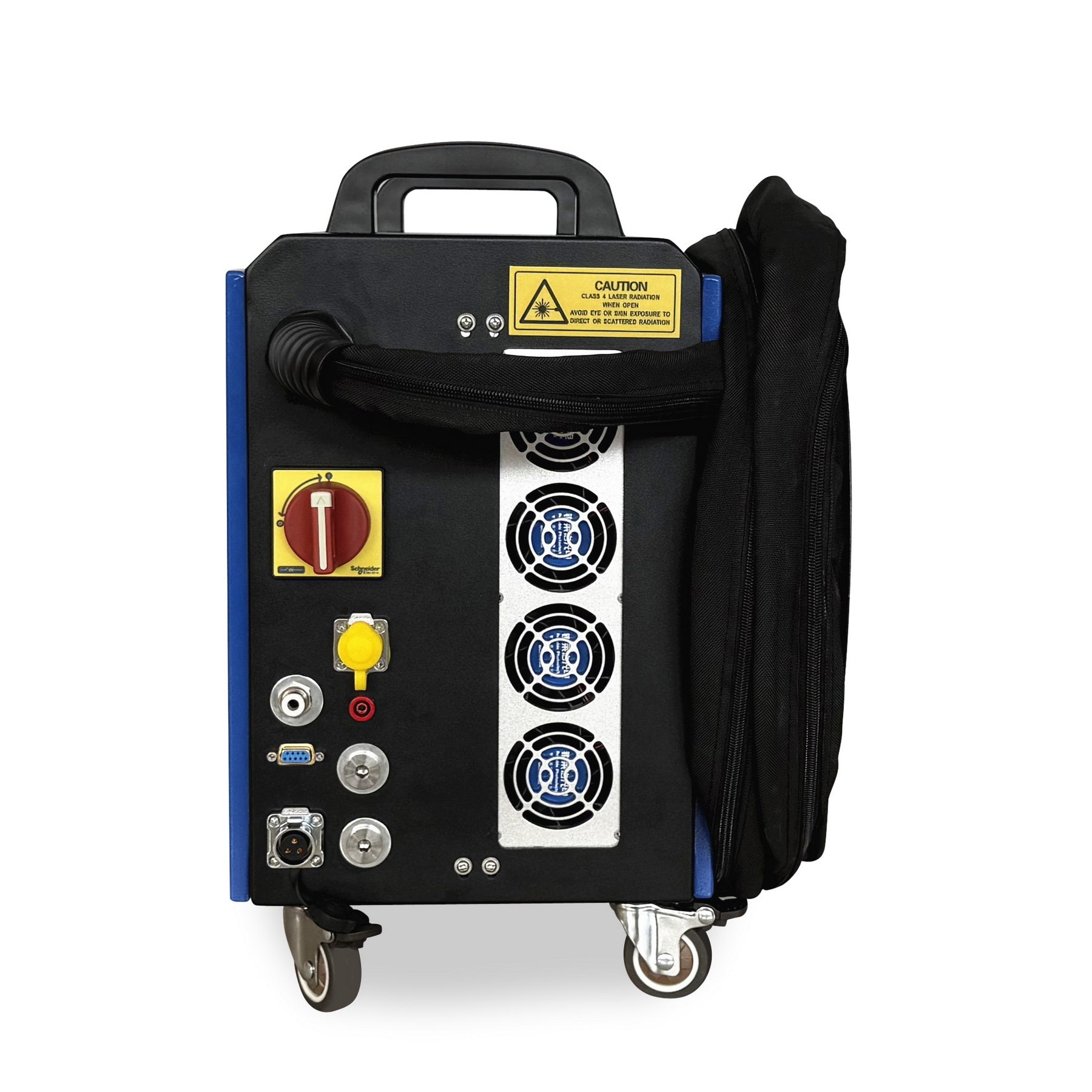

- Cooling System: Air Cooling

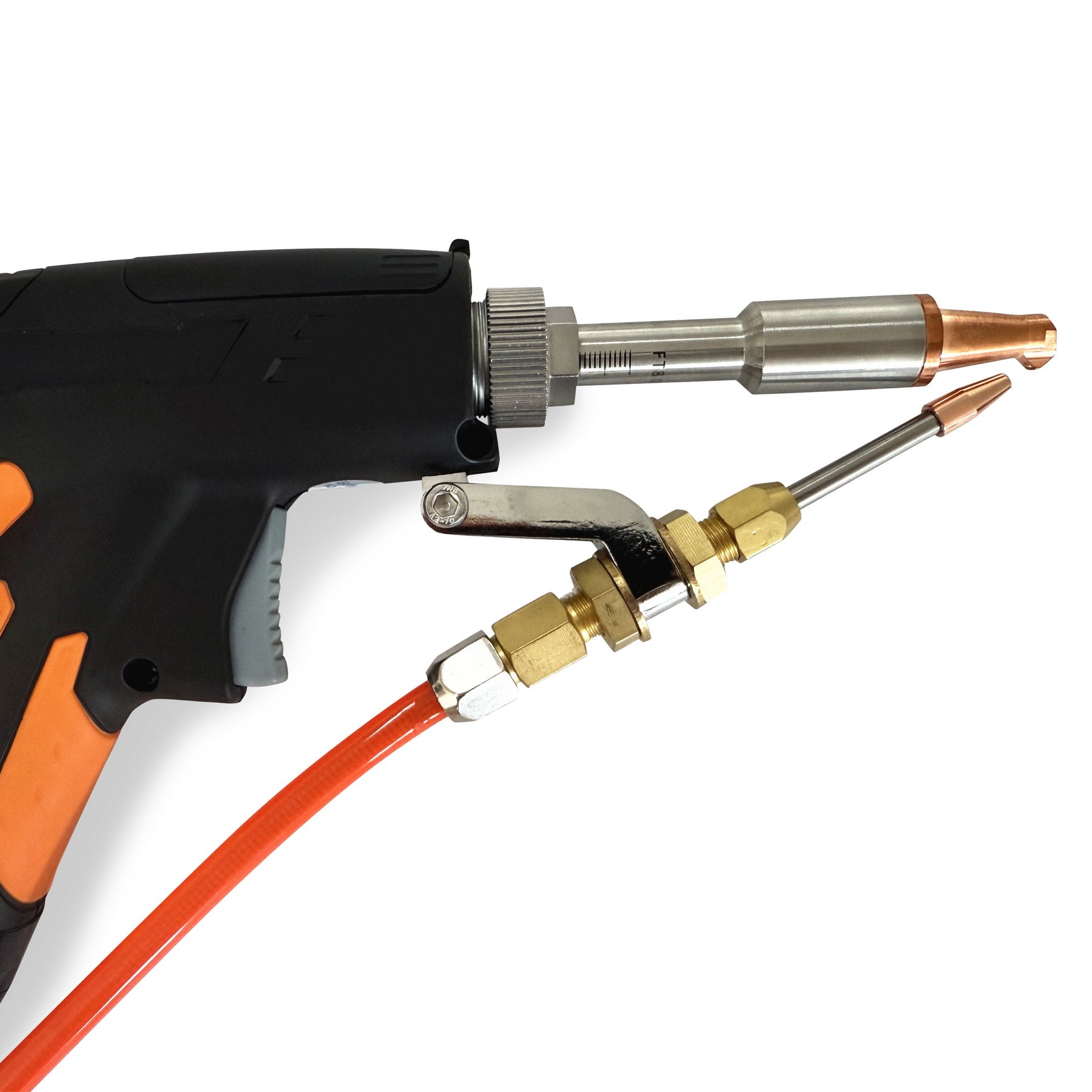

- Welding Head Gun: 1.6 lb handheld wobble (single-dimensional) with user-changeable nozzles
- Wobble Length: Up to 5 mm
- Recommended Welding Gap Width: < 1.5 mm
- Recommended Welding Wire: 0.8 mm, 1.0 mm
- Combined Speed and Depth (Steel/Aluminum): Up to 2.0 mm at optimal welding speed
- Maximum Achievable Depth: 2.5 mm (at slowest speed)
- Rust Removal Scan Width: 10 to 110 mm
- Welding Seam Cleaning Width: up to 12 mm
Gas & Pressure
- Shielding Gas: Argon, Nitrogen, etc.
- Maximum Input Working Pressure: up to 1 MPa (145 PSI)
Environmental Conditions
- Storage Temperature: 5 to 131 degrees Fahrenheit(-15 to 55 degrees Celsius)
- Operating Temperature: 14 to 105 degrees Fahrenheit(-10 to 40 degrees Celsius, not under direct sunlight)
- Humidity: 5% to 85% (no condensation)
Welding Wire
- Wire Weight: 2 to 40 lb
- Wire Hole Diameter: 2 in.
Safety
- Class 4 Laser Device-ANSI Z136.1 safety precautions required
Accessories & Parts Included

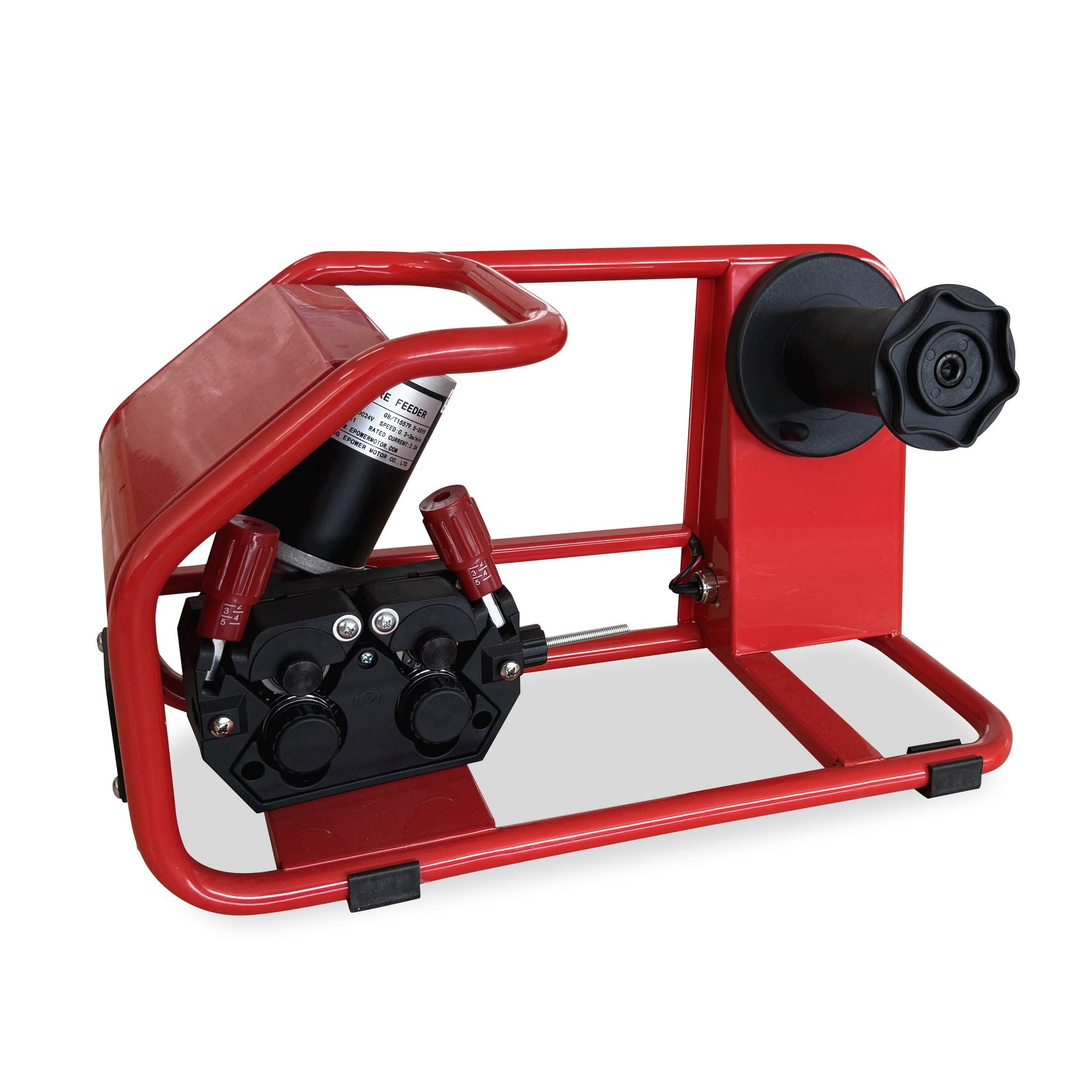

- Single Wire Feeder Machine with Steel Tube
- Protective Lens D18-T2
- Cleaning Function Protective Cover
- Cleaning Function Focus Component F800 (Lens included)
- Welding Head Gun Nozzles: E0.8 mm, E1.0 mm, E1.2 mm, E1.6 mm, H-Cut
- Wire Feeding Head Pipe
- Wire Feeding Pipe Head Nozzles: 0.8 mm, 1.0 mm, 1.2 mm, 1.6 mm
- Shielding Gas Pipe: OD 8 mm, 10 mm
- Wire Feeding Roller: 0.8 mm & 1.0 mm, 1.2 mm & 1.6 mm (double-sided, 4 total, 2 pre-installed)
- Wire Feeder Power Cable
- Wire Feeder Signal Cable
- Safety Glasses
